Ξ We produce and supply a variety of metallic substrates to the superconductor industry both 3D surface modified and standard flat geometries. At our facilities, we combine innovative patterning with special electrochemical etching+polishing for unique 3D shaping and state of the art smooth surfaces.

Ξ

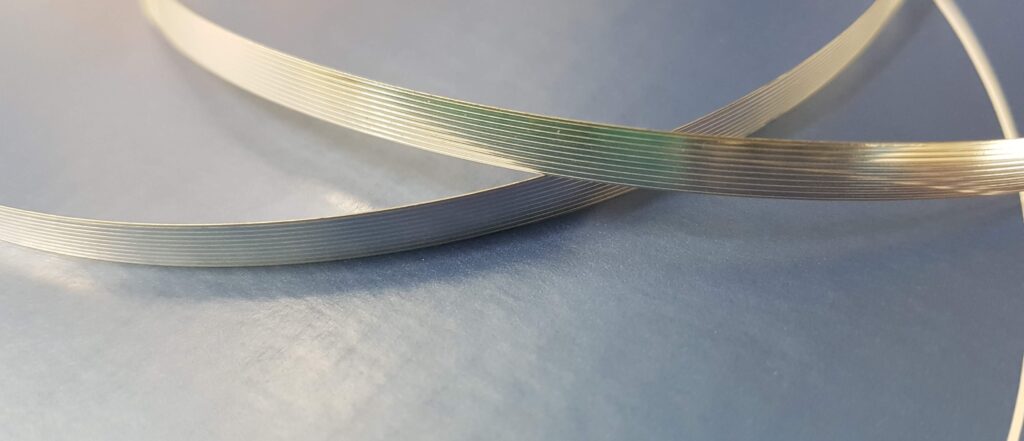

3D MULTIFILAMENTARY SUBSTRATES





Specifications – SUBRA MF-tape

                           Standard filament widths: 0.2 – 2 mm (short pieces down to 0.025 mm)

                           Standard tape widths: 4 mm and 12 mm

                           Standard thickness: 30-100µm (please contact us for alternative thickness)

                           Hastelloy-based (C276 or others including Ni-W is optional)

                           Final surface roughness: Ra~2-3 nm

                           Standard Single Tape length: 1.5 km (capacity up to 2 km)



SUBRAs MF-tape can be employed directly in commercial coated conductor production systems



Ξ

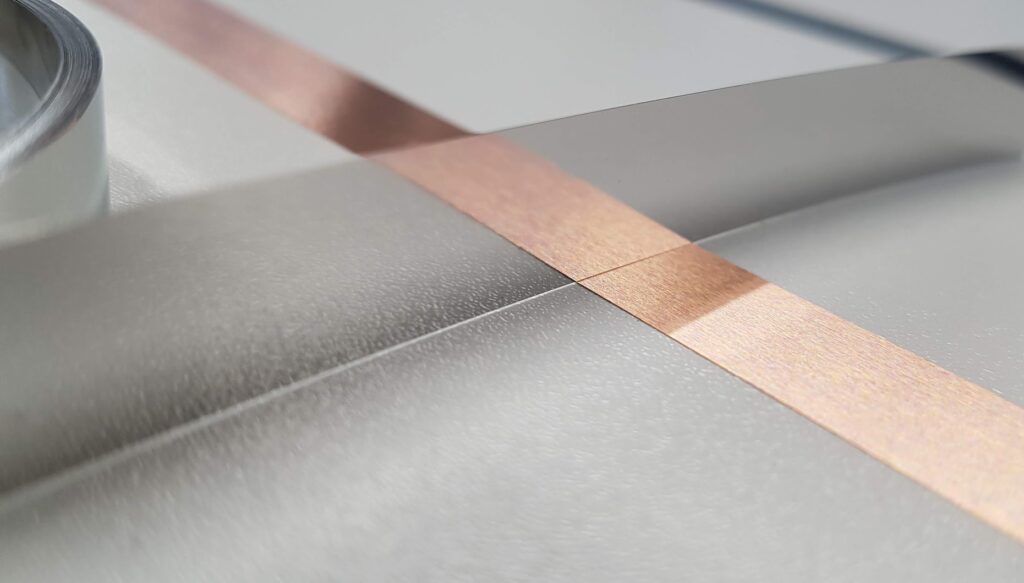

NANOPOLISHED SUBSTRATE





Specifications – SUBRA NP-tape

                                  Standard widths: 4 mm and 12 mm

                                  Standard thickness range: 30-100 µm (please contact us for alternatives)

                                  Hastelloy-based: (C276 or others including Ni-W is optional)

                                  Final surface roughness: Ra~3 nm (SUBRA NP+ with Ra<1 nm coming soon)

                                  Standard tape length: 1 km (2.5 km capacity)

SUBRA’s NP-tape is employed directly in commercial coated conductor production systems



Ξ

Need a special conductor design for your application?

Using our special patterning techniques we develop unique substrate designs to match your application



Contact us at info@subra.dk for any inquiries
